Schema documentation for ProductList.xsd

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Used by

No namespace

	Main Schema
	ProductList.xsd

	Included Schemas
	CommonElements.xsd

	Elements
	Address Attribute Attributes Errors Product ProductList ProductListSubmit ProductLists Products RestrictionList

	Attribute Groups
	CommonAttributes

Main schema ProductList.xsd

Annotations

Contains product list definition along with associated products.

[ top ]

Included schema CommonElements.xsd

[ top ]

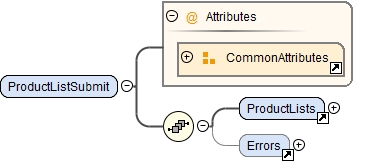

Element ProductListSubmit

Diagram

Instance

<ProductListSubmit Culture="en" EndTime="" ErrorCount="0" LoadFilter="" LoadType="" SiteID="" StartTime="" StatusID="" TransactionID="" Transformed="false" Version="">
  <ProductLists Version="">{1,1}</ProductLists>
  <Errors>{0,1}</Errors>
</ProductListSubmit>

Attributes

QName

Type

Default

Use

Annotation

Culture

xs:string

optional

EndTime

xs:dateTime

optional

ErrorCount

xs:integer

optional

LoadFilter

xs:string

optional

LoadFilter must indicate the Entity Type.  Only one Entity Type per file is allowed. i.e. “Product”

LoadType

xs:string

required

FULL, FULLBranch, or PARTIAL
Note: partial loads require each record to explicitly declare if it is deprecated or not.  Full loads assume anything not in the load is deprecated.

SiteID

xs:string

optional

StartTime

xs:dateTime

optional

StatusID

xs:integer

optional

TransactionID

xs:string

optional

Transformed

xs:boolean

false

optional

Version

xs:decimal

required

[ top ]

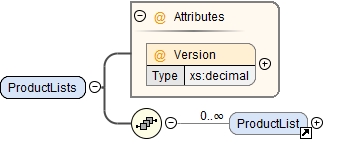

Element ProductLists

Diagram

Used by

Element

ProductListSubmit

Instance

<ProductLists Version="">
  <ProductList Deprecated="" Version="">{0,unbounded}</ProductList>
</ProductLists>

Attributes

QName	Type	Use
Version	xs:decimal	optional

[ top ]

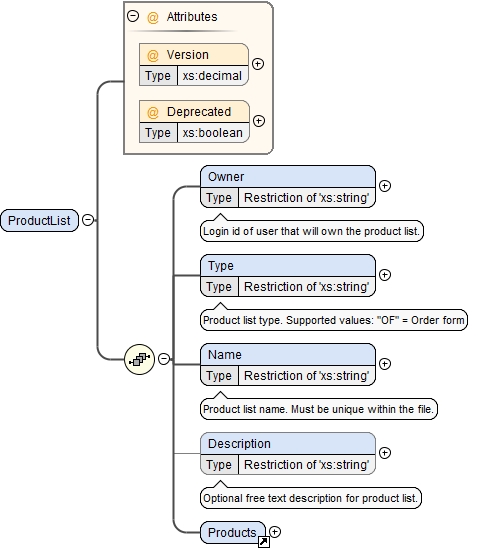

Element ProductList

Diagram

Used by

Element

ProductLists

Instance

<ProductList Deprecated="" Version="">
  <Owner>{1,1}</Owner>
  <Type>{1,1}</Type>
  <Name>{1,1}</Name>
  <Description>{0,1}</Description>
  <Products>{1,1}</Products>
</ProductList>

Attributes

QName	Type	Use
Deprecated	xs:boolean	optional
Version	xs:decimal	optional

[ top ]

Element ProductList / Owner

Annotations

Login id of user that will own the product list.

Diagram

Facets

maxLength

[ top ]

Element ProductList / Type

Annotations

Product list type. Supported values: "OF" = Order form

Diagram

Facets

maxLength

[ top ]

Element ProductList / Name

Annotations

Product list name. Must be unique within the file.

Diagram

Facets

maxLength

[ top ]

Element ProductList / Description

Annotations

Optional free text description for product list.

Diagram

Facets

maxLength

255

[ top ]

Element Products

Diagram

Used by

Element

ProductList

Instance

<Products>
  <Product>{1,unbounded}</Product>
</Products>

[ top ]

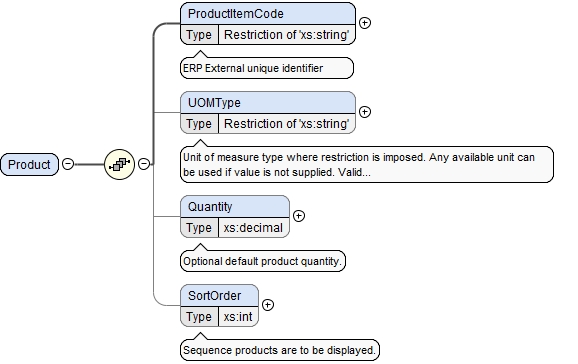

Element Product

Diagram

Used by

Element

Products

Instance

<Product>
  <ProductItemCode>{1,1}</ProductItemCode>
  <UOMType>{0,1}</UOMType>
  <Quantity>{0,1}</Quantity>
  <SortOrder>{0,1}</SortOrder>
</Product>

[ top ]

Element Product / ProductItemCode

Annotations

ERP External unique identifier

Diagram

Facets

maxLength

[ top ]

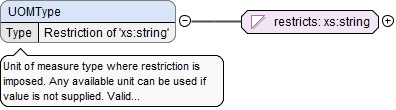

Element Product / UOMType

Annotations

Unit of measure type where restriction is imposed. Any available unit can be used if value is not supplied. Valid values are: "Generic","Inner", "Outer".

Diagram

Facets

maxLength

[ top ]

Element Product / Quantity

Annotations

Optional default product quantity.

Diagram

[ top ]

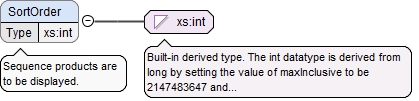

Element Product / SortOrder

Annotations

Sequence products are to be displayed.

Diagram

[ top ]

Element Errors

Diagram

Used by

Element

ProductListSubmit

Instance

<Errors>
  <Error>{0,unbounded}</Error>
</Errors>

[ top ]

Element Errors / Error

Diagram

Instance

<Error>
  <ErrorCode>{1,1}</ErrorCode>
  <ErrorRef>{1,1}</ErrorRef>
  <ErrorMsg>{1,1}</ErrorMsg>
  <AdditionalInfo>{0,1}</AdditionalInfo>
</Error>

[ top ]

Element Errors / Error / ErrorCode

Diagram

[ top ]

Element Errors / Error / ErrorRef

Diagram

[ top ]

Element Errors / Error / ErrorMsg

Diagram

[ top ]

Element Errors / Error / AdditionalInfo

Diagram

[ top ]

Element RestrictionList

Diagram

Instance

<RestrictionList>
  <RestrictionCode RestrictionType="">{0,unbounded}</RestrictionCode>
</RestrictionList>

[ top ]

Element RestrictionList / RestrictionCode

Diagram

Attributes

QName

Type

Use

Annotation

RestrictionType

xs:string

required

RestrictTo, Permit, or Deny

[ top ]

Element Attribute

Diagram

Used by

Element

Attributes

Instance

<Attribute Deprecated="" Scope="">
  <EntityCode>{0,1}</EntityCode>
  <Name>{1,1}</Name>
  <Value DataType="">{0,1}</Value>
</Attribute>

Attributes

QName

Type

Use

Annotation

Deprecated

xs:boolean

optional

Scope

xs:string

optional

Public, Private, Admin : defines the visibility of the attribute within the site.  Default determined by the of Entity type.

[ top ]

Element Attribute / EntityCode

Annotations

The code of the entity these attributes belong t  - i.e. ProductItemCode  Field is mandatory if attributes are ssent on a separate file.

Diagram

Facets

maxLength

[ top ]

Element Attribute / Name

Annotations

Name of the Attribute

Diagram

[ top ]

Element Attribute / Value

Annotations

Value of the Attribute, must be the string representation of the appropriate type

Diagram

Attributes

QName	Type	Use
DataType	xs:string	optional

[ top ]

Element Attributes

Annotations

Deprecated at Entity Level..  Please use the separate AttributeList Load File to load entity specific attributes.

Diagram

Instance

<Attributes Version="">
  <Attribute Deprecated="" Scope="">{0,unbounded}</Attribute>
</Attributes>

Attributes

QName	Type	Use
Version	xs:decimal	optional

[ top ]

Element Address

Annotations

Generic Address Element

Diagram

Instance

<Address Type="" Version="">
  <Name>{1,1}</Name>
  <Street1>{1,1}</Street1>
  <Street2>{1,1}</Street2>
  <Suburb>{0,1}</Suburb>
  <City>{1,1}</City>
  <Area>{0,1}</Area>
  <State>{0,1}</State>
  <Country>{0,1}</Country>
  <Other>{0,1}</Other>
  <PostCode>{1,1}</PostCode>
  <GeoRef>{0,1}</GeoRef>
  <Phone>{0,1}</Phone>
  <Fax>{0,1}</Fax>
  <Email>{0,1}</Email>
  <Social>{0,1}</Social>
  <Notes>{0,1}</Notes>
  <TimeZone>{0,1}</TimeZone>
  <TimeZoneName>{0,1}</TimeZoneName>
</Address>

Attributes

QName	Type	Use
Type	restriction of xs:string	optional
Version	xs:decimal	optional

[ top ]

Element Address / Name

Diagram

Facets

maxLength

100

[ top ]

Element Address / Street1

Diagram

Facets

maxLength

100

[ top ]

Element Address / Street2

Diagram

Facets

maxLength

100

[ top ]

Element Address / Suburb

Diagram

Facets

maxLength

[ top ]

Element Address / City

Diagram

Facets

maxLength

[ top ]

Element Address / Area

Diagram

Facets

maxLength

[ top ]

Element Address / State

Diagram

Facets

maxLength

[ top ]

Element Address / Country

Diagram

Facets

maxLength

[ top ]

Element Address / Other

Diagram

Facets

maxLength

[ top ]

Element Address / PostCode

Diagram

Facets

maxLength

[ top ]

Element Address / GeoRef

Diagram

Instance

<GeoRef>
  <Lat>{1,1}</Lat>
  <Long>{1,1}</Long>
</GeoRef>

[ top ]

Element Address / GeoRef / Lat

Diagram

[ top ]

Element Address / GeoRef / Long

Diagram

[ top ]

Element Address / Phone

Diagram

Instance

<Phone>
  <Number Description="" Seq="" Type="">{0,unbounded}</Number>
</Phone>

[ top ]

Element Address / Phone / Number

Diagram

Attributes

QName	Type	Use
Description	restriction of xs:string	optional
Seq	xs:integer	optional
Type	restriction of xs:string	required

[ top ]

Element Address / Fax

Diagram

Instance

<Fax>
  <Number Description="" Seq="" Type="">{0,unbounded}</Number>
</Fax>

[ top ]

Element Address / Fax / Number

Diagram

Attributes

QName	Type	Use
Description	restriction of xs:string	optional
Seq	xs:integer	optional
Type	restriction of xs:string	required

[ top ]

Element Address / Email

Diagram

Instance

<Email>
  <Address Description="" Seq="" Type="">{0,unbounded}</Address>
</Email>

[ top ]

Element Address / Email / Address

Diagram

Attributes

QName	Type	Use
Description	restriction of xs:string	optional
Seq	xs:integer	optional
Type	restriction of xs:string	required

[ top ]

Element Address / Social

Diagram

Instance

<Social>
  <Address Description="" Seq="" Type="">{0,unbounded}</Address>
</Social>

[ top ]

Element Address / Social / Address

Diagram

Attributes

QName	Type	Use
Description	restriction of xs:string	optional
Seq	xs:integer	optional
Type	restriction of xs:string	required

[ top ]

Element Address / Notes

Annotations

Address notes – may be used for special purposes such as delivery address notes

Diagram

[ top ]

Element Address / TimeZone

Annotations

TimeZone Offset. Decimal 9.5 =  “+9:30”        http://wwp.greenwichmeantime.com/info/timezone.htm

Diagram

[ top ]

Element Address / TimeZoneName

Annotations

Name of Time Zone (Microsoft)

Diagram

[ top ]

Attribute ProductList / @Version

Used by

Element

ProductList

[ top ]

Attribute ProductList / @Deprecated

Used by

Element

ProductList

[ top ]

Attribute ProductLists / @Version

Used by

Element

ProductLists

[ top ]

Attribute CommonAttributes / @Culture

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @Version

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @LoadType

Annotations

FULL, FULLBranch, or PARTIAL
Note: partial loads require each record to explicitly declare if it is deprecated or not.  Full loads assume anything not in the load is deprecated.

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @LoadFilter

Annotations

LoadFilter must indicate the Entity Type.  Only one Entity Type per file is allowed. i.e. “Product”

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @TransactionID

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @StartTime

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @EndTime

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @SiteID

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @StatusID

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @ErrorCount

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute CommonAttributes / @Transformed

Used by

Attribute Group

CommonAttributes

[ top ]

Attribute RestrictionList / RestrictionCode / @RestrictionType

Annotations

RestrictTo, Permit, or Deny

Used by

Element

RestrictionList/RestrictionCode

[ top ]

Attribute Attribute / Value / @DataType

Used by

Element

Attribute/Value

[ top ]

Attribute Attribute / @Deprecated

Used by

Element

Attribute

[ top ]

Attribute Attribute / @Scope

Annotations

Public, Private, Admin : defines the visibility of the attribute within the site.  Default determined by the of Entity type.

Used by

Element

Attribute

[ top ]

Attribute Attributes / @Version

Used by

Element

Attributes

[ top ]

Attribute Address / Phone / Number / @Type

Facets

enumeration	business
enumeration	other
enumeration	mobile
enumeration	work
enumeration	home

Used by

Element

Address/Phone/Number

[ top ]

Attribute Address / Phone / Number / @Seq

Used by

Element

Address/Phone/Number

[ top ]

Attribute Address / Phone / Number / @Description

Facets

maxLength

Used by

Element

Address/Phone/Number

[ top ]

Attribute Address / Fax / Number / @Type

Facets

enumeration	business
enumeration	other
enumeration	work
enumeration	home

Used by

Element

Address/Fax/Number

[ top ]

Attribute Address / Fax / Number / @Seq

Used by

Element

Address/Fax/Number

[ top ]

Attribute Address / Fax / Number / @Description

Facets

maxLength

Used by

Element

Address/Fax/Number

[ top ]

Attribute Address / Email / Address / @Type

Facets

enumeration	business
enumeration	other
enumeration	work
enumeration	personal

Used by

Element

Address/Email/Address

[ top ]

Attribute Address / Email / Address / @Seq

Used by

Element

Address/Email/Address

[ top ]

Attribute Address / Email / Address / @Description

Facets

maxLength

100

Used by

Element

Address/Email/Address

[ top ]

Attribute Address / Social / Address / @Type

Facets

enumeration	other
enumeration	lynkedin
enumeration	skype
enumeration	im
enumeration	twitter
enumeration	facebook
enumeration	website

Used by

Element

Address/Social/Address

[ top ]

Attribute Address / Social / Address / @Seq

Used by

Element

Address/Social/Address

[ top ]

Attribute Address / Social / Address / @Description

Facets

maxLength

100

Used by

Element

Address/Social/Address

[ top ]

Attribute Address / @Type

Facets

enumeration	business
enumeration	other
enumeration	physical
enumeration	postal
enumeration	delivery
enumeration	home
enumeration	work

Used by

Element

Address

[ top ]

Attribute Address / @Version

Used by

Element

Address

[ top ]

Attribute Group CommonAttributes

Diagram

Used by

Element

ProductListSubmit

Attributes

QName

Type

Default

Use

Annotation

Culture

xs:string

optional

EndTime

xs:dateTime

optional

ErrorCount

xs:integer

optional

LoadFilter

xs:string

optional

LoadFilter must indicate the Entity Type.  Only one Entity Type per file is allowed. i.e. “Product”

LoadType

xs:string

required

FULL, FULLBranch, or PARTIAL
Note: partial loads require each record to explicitly declare if it is deprecated or not.  Full loads assume anything not in the load is deprecated.

SiteID

xs:string

optional

StartTime

xs:dateTime

optional

StatusID

xs:integer

optional

TransactionID

xs:string

optional

Transformed

xs:boolean

false

optional

Version

xs:decimal

required

[ top ]

Showing:

Table of Contents
