No namespace

Main schema Brand.xsd
Annotations

Master Brand List carries information which describes each brand.  The complete Brand list can be sent to Bdirect Brands without products will not be presented to the Customer.   Products without brands will be deemed “unbranded”
[ top ]
Included schema CommonElements.xsd
[ top ]

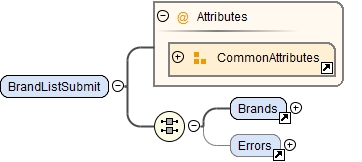

Element BrandListSubmit
Diagram
Diagram Brand.tmp#CommonAttributes Brand.tmp#Brands Brand.tmp#Errors
Instance

<BrandListSubmit Culture="en" EndTime="" ErrorCount="0" LoadFilter="" LoadType="" SiteID="" StartTime="" StatusID="" TransactionID="" Transformed="false" Version="">
  <Brands Version="">{1,1}</Brands>
  <Errors>{0,1}</Errors>
</BrandListSubmit>
Attributes
QName Type Default Use Annotation
Culture xs:string en optional
EndTime xs:dateTime optional
ErrorCount xs:integer 0 optional
LoadFilter xs:string optional
LoadFilter must indicate the Entity Type.  Only one Entity Type per file is allowed. i.e. “Product”
LoadType xs:string required
FULL, FULLBranch, or PARTIAL
Note: partial loads require each record to explicitly declare if it is deprecated or not.  Full loads assume anything not in the load is deprecated.
SiteID xs:string optional
StartTime xs:dateTime optional
StatusID xs:integer optional
TransactionID xs:string optional
Transformed xs:boolean false optional
Version xs:decimal required
[ top ]
Element Brands
Diagram
Diagram Brand.tmp#Brands_Version Brand.tmp#Brand
Used by
Element BrandListSubmit
Instance

<Brands Version="">
  <Brand Deprecated="" Version="1.0">{0,unbounded}</Brand>
</Brands>
Attributes
QName Type Use
Version xs:decimal optional
[ top ]

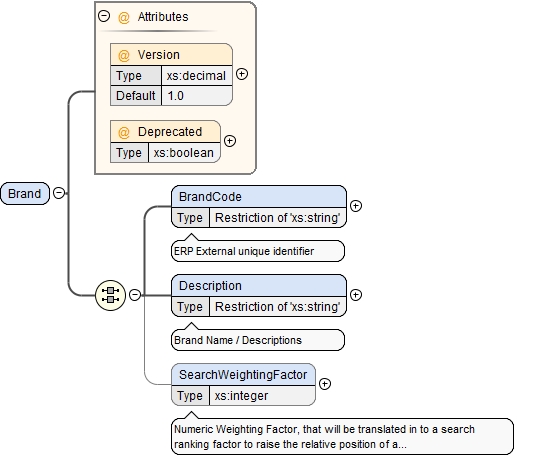

Element Brand
Diagram
Diagram Brand.tmp#Brand_Version Brand.tmp#Brand_Deprecated Brand.tmp#Brand_BrandCode Brand.tmp#Brand_Description Brand.tmp#Brand_SearchWeightingFactor
Used by
Element Brands
Instance

<Brand Deprecated="" Version="1.0">
  <BrandCode>{1,1}</BrandCode>
  <Description>{1,1}</Description>
  <SearchWeightingFactor>{0,1}</SearchWeightingFactor>
</Brand>
Attributes
QName Type Default Use
Deprecated xs:boolean optional
Version xs:decimal 1.0 optional
[ top ]
Element Brand / BrandCode
Annotations

ERP External unique identifier
Diagram
Diagram
Facets
maxLength 36
[ top ]
Element Brand / Description
Annotations

Brand Name / Descriptions
Diagram
Diagram
Facets
maxLength 50
[ top ]

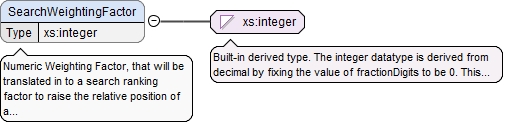

Element Brand / SearchWeightingFactor
Annotations

Numeric Weighting Factor, that will be translated in to a search ranking factor to raise the relative position of a brand in a search results band. Typically range from
0 – no change to 100 – top but effect will vary according to algorithm used.
Promoting brands can be significant sales opportunity with suppliers
Diagram
Diagram
[ top ]
Element Errors
Diagram
Diagram Brand.tmp#Errors_Error
Used by
Element BrandListSubmit
Instance

<Errors>
  <Error>{0,unbounded}</Error>
</Errors>
[ top ]
Element Errors / Error
Diagram
Diagram Brand.tmp#Errors_Errors_Error_ErrorCode Brand.tmp#Errors_Errors_Error_ErrorRef Brand.tmp#Errors_Errors_Error_ErrorMsg Brand.tmp#Errors_Errors_Error_AdditionalInfo
Instance

<Error>
  <ErrorCode>{1,1}</ErrorCode>
  <ErrorRef>{1,1}</ErrorRef>
  <ErrorMsg>{1,1}</ErrorMsg>
  <AdditionalInfo>{0,1}</AdditionalInfo>
</Error>
[ top ]
Element Errors / Error / ErrorCode
Diagram
Diagram
[ top ]
Element Errors / Error / ErrorRef
Diagram
Diagram
[ top ]
Element Errors / Error / ErrorMsg
Diagram
Diagram
[ top ]
Element Errors / Error / AdditionalInfo
Diagram
Diagram
[ top ]
Element RestrictionList
Diagram
Diagram Brand.tmp#RestrictionList_RestrictionCode
Instance

<RestrictionList>
  <RestrictionCode RestrictionType="">{0,unbounded}</RestrictionCode>
</RestrictionList>
[ top ]
Element RestrictionList / RestrictionCode
Diagram
Diagram Brand.tmp#RestrictionList_RestrictionList_RestrictionCode_RestrictionType
Attributes
QName Type Use Annotation
RestrictionType xs:string required
RestrictTo, Permit, or Deny
[ top ]
Element Attribute
Diagram
Diagram Brand.tmp#Attribute_Deprecated Brand.tmp#Attribute_Scope Brand.tmp#Attribute_EntityCode Brand.tmp#Attribute_Name Brand.tmp#Attribute_Value
Used by
Element Attributes
Instance

<Attribute Deprecated="" Scope="">
  <EntityCode>{0,1}</EntityCode>
  <Name>{1,1}</Name>
  <Value DataType="">{0,1}</Value>
</Attribute>
Attributes
QName Type Use Annotation
Deprecated xs:boolean optional
Scope xs:string optional
Public, Private, Admin : defines the visibility of the attribute within the site.  Default determined by the of Entity type.
[ top ]
Element Attribute / EntityCode
Annotations

The code of the entity these attributes belong t  - i.e. ProductItemCode  Field is mandatory if attributes are ssent on a separate file.
Diagram
Diagram
Facets
maxLength 36
[ top ]
Element Attribute / Name
Annotations

Name of the Attribute
Diagram
Diagram
[ top ]
Element Attribute / Value
Annotations

Value of the Attribute, must be the string representation of the appropriate type
Diagram
Diagram Brand.tmp#Attribute_Attribute_Value_DataType
Attributes
QName Type Use
DataType xs:string optional
[ top ]
Element Attributes
Annotations

Deprecated at Entity Level..  Please use the separate AttributeList Load File to load entity specific attributes.
Diagram
Diagram Brand.tmp#Attributes_Version Brand.tmp#Attribute
Instance

<Attributes Version="">
  <Attribute Deprecated="" Scope="">{0,unbounded}</Attribute>
</Attributes>
Attributes
QName Type Use
Version xs:decimal optional
[ top ]
Element Address
Annotations

Generic Address Element
Diagram
Diagram Brand.tmp#Address_Type Brand.tmp#Address_Version Brand.tmp#Address_Name Brand.tmp#Address_Street1 Brand.tmp#Address_Street2 Brand.tmp#Address_Suburb Brand.tmp#Address_City Brand.tmp#Address_Area Brand.tmp#Address_State Brand.tmp#Address_Country Brand.tmp#Address_Other Brand.tmp#Address_PostCode Brand.tmp#Address_GeoRef Brand.tmp#Address_Phone Brand.tmp#Address_Fax Brand.tmp#Address_Email Brand.tmp#Address_Social Brand.tmp#Address_Notes Brand.tmp#Address_TimeZone Brand.tmp#Address_TimeZoneName
Instance

<Address Type="" Version="">
  <Name>{1,1}</Name>
  <Street1>{1,1}</Street1>
  <Street2>{1,1}</Street2>
  <Suburb>{0,1}</Suburb>
  <City>{1,1}</City>
  <Area>{0,1}</Area>
  <State>{0,1}</State>
  <Country>{0,1}</Country>
  <Other>{0,1}</Other>
  <PostCode>{1,1}</PostCode>
  <GeoRef>{0,1}</GeoRef>
  <Phone>{0,1}</Phone>
  <Fax>{0,1}</Fax>
  <Email>{0,1}</Email>
  <Social>{0,1}</Social>
  <Notes>{0,1}</Notes>
  <TimeZone>{0,1}</TimeZone>
  <TimeZoneName>{0,1}</TimeZoneName>
</Address>
Attributes
QName Type Use
Type restriction of xs:string optional
Version xs:decimal optional
[ top ]
Element Address / Name
Diagram
Diagram
Facets
maxLength 100
[ top ]
Element Address / Street1
Diagram
Diagram
Facets
maxLength 100
[ top ]
Element Address / Street2
Diagram
Diagram
Facets
maxLength 100
[ top ]
Element Address / Suburb
Diagram
Diagram
Facets
maxLength 50
[ top ]
Element Address / City
Diagram
Diagram
Facets
maxLength 50
[ top ]
Element Address / Area
Diagram
Diagram
Facets
maxLength 50
[ top ]
Element Address / State
Diagram
Diagram
Facets
maxLength 50
[ top ]
Element Address / Country
Diagram
Diagram
Facets
maxLength 50
[ top ]
Element Address / Other
Diagram
Diagram
Facets
maxLength 50
[ top ]
Element Address / PostCode
Diagram
Diagram
Facets
maxLength 50
[ top ]
Element Address / GeoRef
Diagram
Diagram Brand.tmp#Address_Address_GeoRef_Lat Brand.tmp#Address_Address_GeoRef_Long
Instance

<GeoRef>
  <Lat>{1,1}</Lat>
  <Long>{1,1}</Long>
</GeoRef>
[ top ]
Element Address / GeoRef / Lat
Diagram
Diagram
[ top ]
Element Address / GeoRef / Long
Diagram
Diagram
[ top ]
Element Address / Phone
Diagram
Diagram Brand.tmp#Address_Address_Phone_Number
Instance

<Phone>
  <Number Description="" Seq="" Type="">{0,unbounded}</Number>
</Phone>
[ top ]
Element Address / Phone / Number
Diagram
Diagram Brand.tmp#Address_Address_Phone_Address_Address_Phone_Number_Type Brand.tmp#Address_Address_Phone_Address_Address_Phone_Number_Seq Brand.tmp#Address_Address_Phone_Address_Address_Phone_Number_Description
Attributes
QName Type Use
Description restriction of xs:string optional
Seq xs:integer optional
Type restriction of xs:string required
[ top ]
Element Address / Fax
Diagram
Diagram Brand.tmp#Address_Address_Fax_Number
Instance

<Fax>
  <Number Description="" Seq="" Type="">{0,unbounded}</Number>
</Fax>
[ top ]
Element Address / Fax / Number
Diagram
Diagram Brand.tmp#Address_Address_Fax_Address_Address_Fax_Number_Type Brand.tmp#Address_Address_Fax_Address_Address_Fax_Number_Seq Brand.tmp#Address_Address_Fax_Address_Address_Fax_Number_Description
Attributes
QName Type Use
Description restriction of xs:string optional
Seq xs:integer optional
Type restriction of xs:string required
[ top ]
Element Address / Email
Diagram
Diagram Brand.tmp#Address_Address_Email_Address
Instance

<Email>
  <Address Description="" Seq="" Type="">{0,unbounded}</Address>
</Email>
[ top ]
Element Address / Email / Address
Diagram
Diagram Brand.tmp#Address_Address_Email_Address_Address_Email_Address_Type Brand.tmp#Address_Address_Email_Address_Address_Email_Address_Seq Brand.tmp#Address_Address_Email_Address_Address_Email_Address_Description
Attributes
QName Type Use
Description restriction of xs:string optional
Seq xs:integer optional
Type restriction of xs:string required
[ top ]
Element Address / Social
Diagram
Diagram Brand.tmp#Address_Address_Social_Address
Instance

<Social>
  <Address Description="" Seq="" Type="">{0,unbounded}</Address>
</Social>
[ top ]
Element Address / Social / Address
Diagram
Diagram Brand.tmp#Address_Address_Social_Address_Address_Social_Address_Type Brand.tmp#Address_Address_Social_Address_Address_Social_Address_Seq Brand.tmp#Address_Address_Social_Address_Address_Social_Address_Description
Attributes
QName Type Use
Description restriction of xs:string optional
Seq xs:integer optional
Type restriction of xs:string required
[ top ]
Element Address / Notes
Annotations

Address notes – may be used for special purposes such as delivery address notes
Diagram
Diagram
[ top ]
Element Address / TimeZone
Annotations

TimeZone Offset. Decimal 9.5 =  “+9:30”        http://wwp.greenwichmeantime.com/info/timezone.htm
Diagram
Diagram
[ top ]
Element Address / TimeZoneName
Annotations

Name of Time Zone (Microsoft)
Diagram
Diagram
[ top ]
Attribute Brand / @Version
Used by
Element Brand
[ top ]
Attribute Brand / @Deprecated
Used by
Element Brand
[ top ]
Attribute Brands / @Version
Used by
Element Brands
[ top ]
Attribute CommonAttributes / @Culture
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @Version
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @LoadType
Annotations

FULL, FULLBranch, or PARTIAL
Note: partial loads require each record to explicitly declare if it is deprecated or not.  Full loads assume anything not in the load is deprecated.
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @LoadFilter
Annotations

LoadFilter must indicate the Entity Type.  Only one Entity Type per file is allowed. i.e. “Product”
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @TransactionID
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @StartTime
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @EndTime
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @SiteID
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @StatusID
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @ErrorCount
Used by
Attribute Group CommonAttributes
[ top ]
Attribute CommonAttributes / @Transformed
Used by
Attribute Group CommonAttributes
[ top ]
Attribute RestrictionList / RestrictionCode / @RestrictionType
Annotations

RestrictTo, Permit, or Deny
Used by
[ top ]
Attribute Attribute / Value / @DataType
Used by
Element Attribute/Value
[ top ]
Attribute Attribute / @Deprecated
Used by
Element Attribute
[ top ]
Attribute Attribute / @Scope
Annotations

Public, Private, Admin : defines the visibility of the attribute within the site.  Default determined by the of Entity type.
Used by
Element Attribute
[ top ]
Attribute Attributes / @Version
Used by
Element Attributes
[ top ]
Attribute Address / Phone / Number / @Type
Facets
enumeration business
enumeration other
enumeration mobile
enumeration work
enumeration home
Used by
[ top ]
Attribute Address / Phone / Number / @Seq
Used by
[ top ]
Attribute Address / Phone / Number / @Description
Facets
maxLength 25
Used by
[ top ]
Attribute Address / Fax / Number / @Type
Facets
enumeration business
enumeration other
enumeration work
enumeration home
Used by
[ top ]
Attribute Address / Fax / Number / @Seq
Used by
[ top ]
Attribute Address / Fax / Number / @Description
Facets
maxLength 25
Used by
[ top ]
Attribute Address / Email / Address / @Type
Facets
enumeration business
enumeration other
enumeration work
enumeration personal
Used by
[ top ]
Attribute Address / Email / Address / @Seq
Used by
[ top ]
Attribute Address / Email / Address / @Description
Facets
maxLength 100
Used by
[ top ]
Attribute Address / Social / Address / @Type
Facets
enumeration other
enumeration lynkedin
enumeration skype
enumeration im
enumeration twitter
enumeration facebook
enumeration website
Used by
[ top ]
Attribute Address / Social / Address / @Seq
Used by
[ top ]
Attribute Address / Social / Address / @Description
Facets
maxLength 100
Used by
[ top ]
Attribute Address / @Type
Facets
enumeration business
enumeration other
enumeration physical
enumeration postal
enumeration delivery
enumeration home
enumeration work
Used by
Element Address
[ top ]
Attribute Address / @Version
Used by
Element Address
[ top ]
Attribute Group CommonAttributes
Diagram
Diagram Brand.tmp#CommonAttributes_Culture Brand.tmp#CommonAttributes_Version Brand.tmp#CommonAttributes_LoadType Brand.tmp#CommonAttributes_LoadFilter Brand.tmp#CommonAttributes_TransactionID Brand.tmp#CommonAttributes_StartTime Brand.tmp#CommonAttributes_EndTime Brand.tmp#CommonAttributes_SiteID Brand.tmp#CommonAttributes_StatusID Brand.tmp#CommonAttributes_ErrorCount Brand.tmp#CommonAttributes_Transformed
Used by
Element BrandListSubmit
Attributes
QName Type Default Use Annotation
Culture xs:string en optional
EndTime xs:dateTime optional
ErrorCount xs:integer 0 optional
LoadFilter xs:string optional
LoadFilter must indicate the Entity Type.  Only one Entity Type per file is allowed. i.e. “Product”
LoadType xs:string required
FULL, FULLBranch, or PARTIAL
Note: partial loads require each record to explicitly declare if it is deprecated or not.  Full loads assume anything not in the load is deprecated.
SiteID xs:string optional
StartTime xs:dateTime optional
StatusID xs:integer optional
TransactionID xs:string optional
Transformed xs:boolean false optional
Version xs:decimal required
[ top ]
XML Schema documentation generated by ® XML Editor.
